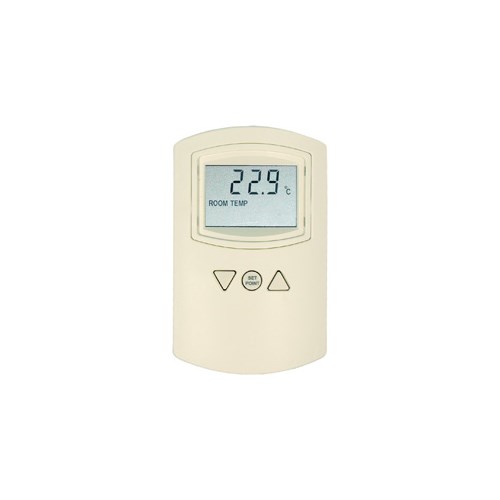

CTE-5201-16 | Tstat: Single, DA, LCD, Modular

The KMC CTE-5201 is a single-setpoint, direct-acting electronic room thermostat with a modular connector. Use the CTE-5201 with relays or actuators, such as the KMC MEP-4042/4842 modular actuators, that have high impedance inputs (10K ohms or higher) and that require a 2–10 volt DC input.

Features

• Modular connector simplifies wiring to relays or actuators with modular connectors
• Large LCD display with backlight for easy viewing
• Display space temperature in either degrees Fahrenheit or degrees Celsius
• Flip-open cover to access advanced features
• Pushbutton initiation of unoccupied/occupied modes
• Adjustable min./max. limits, proportional band, integral, and temperature offset
• Requires 14-19 VDC supply (supplied by MEP-4042/4842 actuators)
