STW-6014NW | Sensor: Wireless Room Temp, Setpoint, EnOcean, 902 MHz, White

STW-6014NW

Sign in with a qualified account to view pricing or
learn how to buy KMC products.

OVERVIEW | Sensor: Wireless Room Temp, Setpoint, EnOcean, 902 MHz, White

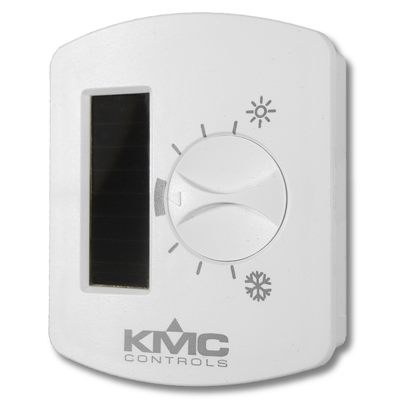

The KMC STW-6010, STW-6014, and THW-1102 series are wireless temperature sensors with optional humidity sensing and setpoint adjustment. Integrated solar/photovoltaic power eliminates or reduces the need for batteries. They connect with KMC Conquest HPO-9007 gateways (and other compatible EnOcean gateways). The HPO-9007 gateways plug into the Room Sensor ports of KMC Conquest BAC-5900/9000/9300 series controllers.

Key features of the sensors include the following:

  • Use the EnOcean (ISO/IEC 14543-3-10) wireless standard
  • With no need to run wiring through walls, save time and labor cost on installation, especially in retrofit applications
  • Energy-harvesting, photovoltaic power reduces (wireless battery-replacement) maintenance
  • Choose from models with temperature only, temperature and humidity, or temperature with setpoint
  • Available frequencies are 902 MHz (for North America) or 868 MHz (for outside North America)
  • Up to 16 wireless sensors can communicate with one KMC HPO-9007NW or HPO-9007DW gateway
  • Durable, low-profile, thermostat-style case is visually appealing and easily mounts to flat surfaces
  • Configuration of the KMC gateway/sensor objects is done through KMC software



READ LESS

Specifications

Brand

KMC Controls

Color

White

Sensor Type

Temperature

Documents

Documents sorted by date, descending.
  APPLICATION GUIDE, Planning Guide For Wireless Sensors(Updated: 2020-11-23)  [Rev. C] View Download
  DATA SHEET, HPO-9007 Series Wireless Sensor Gateways(Updated: 2020-07-23)  [Rev. E] View Download
  HPO-9007 Series Gateways Installation Guide(Updated: 2020-07-13)  [Rev. C] View Download
  DATA SHEET, STW/THW Series Wireless Temperature and Humidity Sensors(Updated: 2020-07-10)  [Rev. E] View Download
  STW/THW Wireless Sensors Installation Guide(Updated: 2020-03-20)  [Rev. D] View Download
