STE-1424 | Sensor: Immersion (or Duct), Temperature, 10K-Type III, 6″ Probe

The KMC STE-1400 Series, Type III, 10,000 ohm thermistor temperature sensors are available in different housings for surface, duct, duct averaging, immersion, strap-on, and outside air applications.

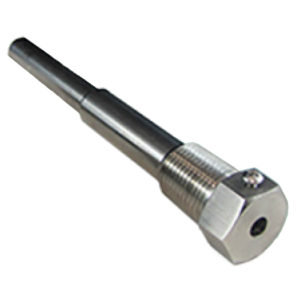

The STE-1424 immersion sensor is encapsulated in a 6-inch long, 1/4-inch O.D., 304 stainless-steel probe. The probe protrudes from the bottom of the sensor housing, minimizing lead length error. The probe inserts into an HMO-4546 stainless-steel thermowell.

For optimal sensing, use HMO-4532 thermal compound in the thermowell for optimal heat transfer from the thermowell to the probe.

For a 4-inch immersion sensor, see the STE-1423.

The STE-1424 immersion sensor replaces the older STE-1422 used with a (threaded) HMO-4544 thermowell. When replacing an STE-1422 sensor with an STE-1424, also replace the thermowell with an HMO-4546.

The STE-1424 may also be used as a duct sensor (without a thermowell).
