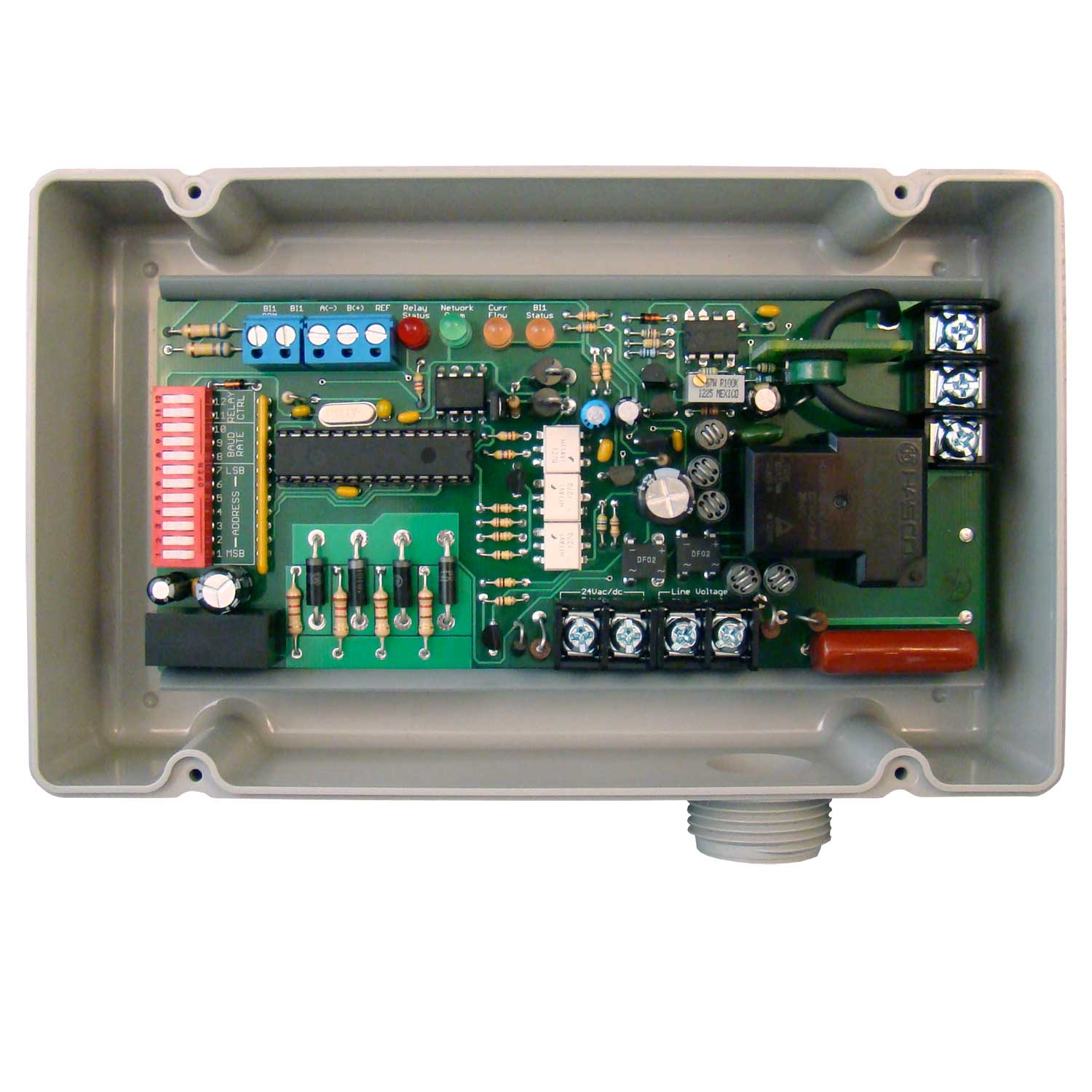

RIBTWX2401B-BC | FD: BacNet Enclosed Relay Hi/Low sep 20Amp 24Vac/dc or 120Vac current sense

BACnet® MS/TP Network Relay Device/Current Sensor Combo two Binary Inputs (One Current Sensor & One Dry Contact Digital Input), One Binary Output (20 Amp Relay SPDT + Override), and Two Binary Inputs (One Current Sensor 0.25 – 20 Amp, Relay Load Sensing & One Dry Contact Binary Input); enclosed; 24 Vac/Vdc or 120 Vac Power Input.
Optional End-of-Line (EOL) resistor included.

• Enclosed
• Two (2) Binary Inputs (One Current Sensor & One Dry Contact Digital Input)
• One Binary Output (20 Amp Relay SPDT + Override)
• Two Binary Inputs (One Current Sensor 0.25 – 20 Amp, Relay Load Sensing & One Dry Contact Binary Input)
• 24 Vac/Vdc or 120 Vac Power Input
• Optional End-of-Line (EOL) resistor included.

For full Functional Devices, Inc. product descriptions and specifications, go to functionaldevices.com and enter the part number in the Search field found at the top of the page.
