This part belongs to the series: CSC-2000 Series Pneumatic Reset Volume Controllers
See All Products in the Series

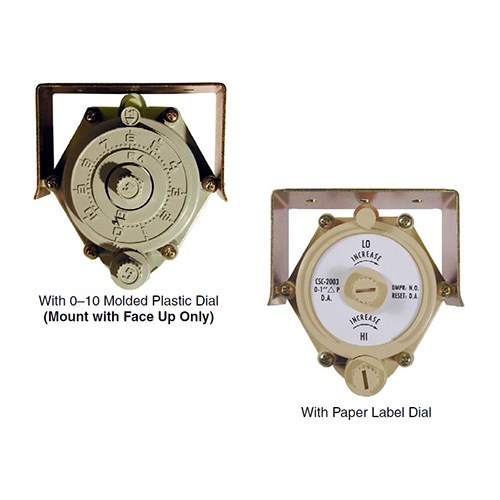

CSC-2003 | Controller: VAV, DA/NO, 0-1″, Beige

Controller: VAV, DA/NO, 0-1", Beige
CSC-2003

Sign in with a qualified account to view pricing or
learn how to buy KMC products.

OVERVIEW | Controller: VAV, DA/NO, 0-1", Beige

The KMC CSC-2000 Series Reset Volume Controllers are designed for use on VAV terminal units in HVAC systems. The CSC-2000s are sub-master air velocity controllers with adjustable minimum and maximum velocity limits. A master controller, typically a room thermostat, resets the CSC velocity setpoint.

Direct acting models are for normally open VAV terminal units. Reverse acting are for normally closed VAV terminal units.

Each is equipped with separate adjustment knobs for minimum and maximum airflow settings. All models should be calibrated with the use of airflow measuring equipment.

See also the CSC-3000 series.

READ LESS

Specifications

Application

VAV

Brand

KMC Controls

Sensor Type

Pressure/Flow

VAV Control

Pressure Independent

VAV Type

Single Duct

Documents

Documents sorted by date, descending.
  CSC-2000 Series Applications Guide(Updated: 2019-05-14) View Download
  Replacing CSC-1001 Controllers with CSC-2000/3000 Series Controllers Application Guide (AN0811A)(Updated: 2019-05-14) View Download
  DATA SHEET, CSC-2000 Series Reset Volume Controllers(Updated: 2019-05-14) View Download
  CSC-2000 Series Installation Guide(Updated: 2019-05-14) View Download
  KMC Master Cross-Reference(Updated: 2017-06-12)  [Rev. 6-12-17] View Download
  WHITE PAPER, Pneumatic to Digital--Open System Conversions(Updated: 2013-10-29)  [Rev. A] View Download
