TSP-8003 | Actuator: Tri-State with Pressure Sensor, 40in-lbs, 90 sec.
Sign in with a qualified account to view pricing or
learn how to buy KMC products.
OVERVIEW | Actuator: Tri-State with Pressure Sensor, 40in-lbs, 90 sec.

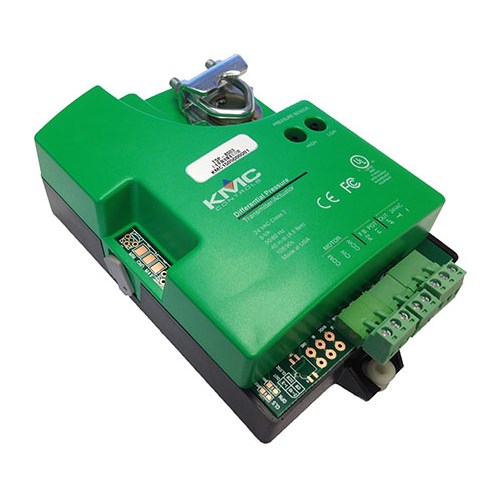

The Conquest TSP-8003 is a 40 in-lb. tri-state actuator with a differential air pressure sensor, typically used in Conquest VAV (Variable Air Volume) dual-duct applications as a secondary actuator.
The TSP-8003 connects directly to a Conquest BAC-9000 series VAV controller-actuator for easy installation. No setup for the TSP-8003 is required since all programming and sequences are part of the BAC-9001.
With integrated actuator and air pressure sensor, it is ideal for new installations and upgrades of less-efficient equipment. It easily mounts to terminal boxes by securing a “V” clamp on the shaft and securing a single-screw anti-rotation bracket.
Application options include:
- Dual duct VAV or CAV
- Building pressure control damper*
- Bypass damper*
- Economizer damper*
*NOTE: Requires custom programming in the controller.
Specifications
Actuator Type | Electric |
---|---|
Brand | KMC Controls |
Control Input | 24 VAC |
Fail-Safe | No |
Feedback | Feedback Pot |
Input Types | Tri-state |
Mounting | V-Bolt/ Screws |
Power Supply | 24 VAC |
Timing (sec) | 90 |
Torque | 40 in-lb |
VAV Control | Pressure Independent |
VAV Type | Dual Duct |
