MEP-5223 | Actuator: Tri-State, Non-Failsafe, 24VAC, 10 in-lbs, 45 deg, 3 Deg/sec
Sign in with a qualified account to view pricing or
learn how to buy KMC products.
OVERVIEW | Actuator: Tri-State, Non-Failsafe, 24VAC, 10 in-lbs, 45 deg, 3 Deg/sec

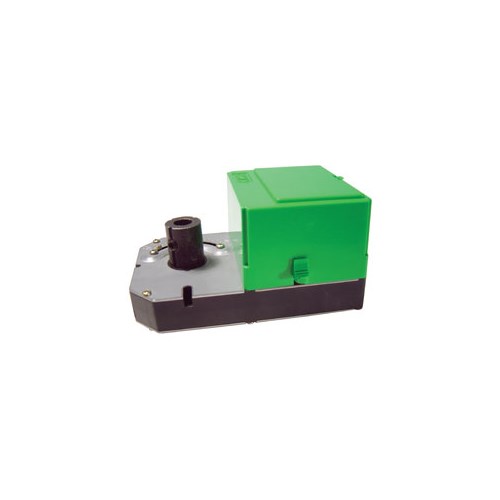

The MEP-5223 and MEP-5233 are replacement damper actuators designed for residential dampers. The 24 VAC, tri-state, 10 in-lb., direct-coupled actuator provides smooth and quiet performance, with fast, 15-second closings and openings.
These actuators are intended for replacement on series B and C style residential dampers only—not the A series dampers. The MEP-5223 is intended for replacement on round dampers with a fully closed blade angle of 45 degrees. The MEP-5233 is intended for replacement on rectangular dampers with a fully closed blade angle of 90 degrees.
MEP-5223 45-degree, replaces:
• Carrier DAMPACT45DEG
• Carrier 33CC500621
• KMC MEP-5203-30
MEP-5233 90-degree, replaces:
• Carrier DAMPACT90DEG
• Carrier 33CC500623
• KMC MEP-5213-30
• Johnson M9101-AGA-2N2
See also the MEP-4101 fast-acting, tri-state actuator.
Specifications
| Actuator Type | Electric |
|---|---|
| Brand | KMC Controls |
| Control Input | 24 VAC |
| Fail-Safe | No |
| Input Types | Tri-state |
| Mounting | V-Bolt/ Screws |
| Normality (Fail) | Fail In Place |
| Power Supply | 24 VAC |
| Selection Guide | Actuator-Only |
| Timing (sec) | 15 |
| Torque | 10 in-lb |
