TSP-8001 | Actuator: SimplyVAV, Tri-State with Pressure Sensor, 40in-lbs, 90 sec.

TSP-8001 - Actuator: SimplyVAV, Tri-State with Pressure Sensor, 40in-lbs, 90 sec.
TSP-8001
Add to Compare

Sign in with a qualified account to view pricing or
learn how to buy KMC products.

OVERVIEW | Actuator: SimplyVAV, Tri-State with Pressure Sensor, 40in-lbs, 90 sec.

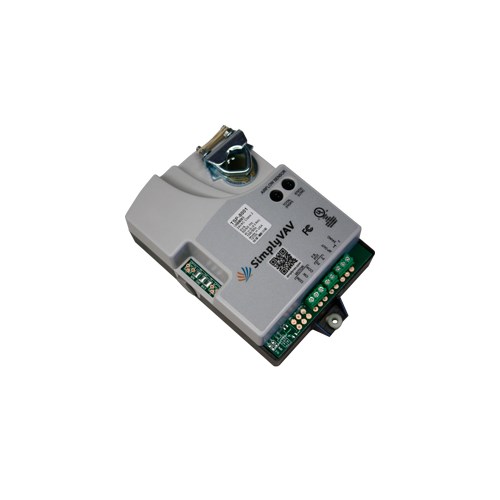

The TSP-8001 is a secondary actuator for SimplyVAV dual-duct installations. The actuator connects directly to a BAC-8007 SimplyVAV controller for easy installation.

  • Integrated airflow sensor
  • All programming and sequences are built into the SimplyVAV BAC-8007 dual duct primary controller.
  • All inputs and outputs for SimplyVAV controllers are set up at the factory.
  • No field programming required.
READ LESS

Specifications

Actuator Type

Electric
Brand

KMC Controls
Control Input

24 VAC
Fail-Safe

No
Feedback

Feedback Pot
Input Types

Tri-state
Mounting

V-Bolt/ Screws
Power Supply

24 VAC
Timing (sec)

90
Torque

40 in-lb
VAV Control

Pressure Independent
VAV Type

Dual Duct

Documents

Documents sorted by date, descending.
  APPLICATION AND INSTALLATION GUIDE SimplyVAV Controllers Rev N(Updated: 2023-03-03)  [Rev. N] View Download
  DATA SHEET, SimplyVAV for TSP-8001 secondary actuator(Updated: 2020-07-21)  [Rev. B] View Download
  SimplyVAV Installation sheet for TSP-8001 secondary actuator(Updated: 2020-07-21)  [Rev. B] View Download
  BROCHURE, SimplyVAV Sales Sheet (SB-059A)(Updated: 2020-07-17)  [Rev. A] View Download
  KMC Product Overview Brochure (Updated: 2018-05-01)  [Rev. May 2018] View Download

Downloads

Documents sorted by date, descending.
  SimplyVAV engineering submittal sheets(Updated: 2019-05-14)  Download
You can find the Electronic Actuators you are looking for by using the following link: Electronic Actuator Calculator
